YC cnc waterjet cutting machine with drilling head

  • 1 - 1 Sets
    $33,000.00
  • >=2 Sets
    $32,000.00
Model Number:
YCWJ-L2015/L3015/L4020/L2060
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
YC
Condition:
New
Type:
Water Jet Cutters
Voltage:
380/220/400VAC, 50Hz ,3 phase
Rated Power:
30kw/40hp or 37kw/50hp
Dimension(L*W*H):
according to the model of machine
Weight:
2500kg
Certification:
CE, ISO9001
Warranty:
1 Year
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support, Engineers available to service machinery overseas
Key Selling Points:
High Productivity
Applicable Industries:
Building Material Shops, Manufacturing Plant, Home Use, Construction works
Machine name:
YC cnc waterjet cutting machine with drilling head
Cutting materials:
Stainless steel , brass, aluminum, glass.etc
Max. operating pressure:
380mpa or 420mpa
Cutting accuracy:
0.1mm
Max. water flow:
3.7 L/Min
Max. orifice diameter:
0.33mm(0.013'')
AC servo control system:
MISUBISHI
Ball screw:
HIWIN
Intensifier Assembly:
Hypertherm(Accustream), KMT(H2O)
Supply Ability
Supply Ability:
20 Set/Sets per Month small YCWJ marble tile cnc waterjet machine prices
Packaging & Delivery
Packaging Details
HS code:8456500000;One set of YC cnc waterjet cutting machine with drilling head packaging includes non-log wooden box packaging, carton packaging and plastic film packaging.
Port
Shanghai or as your request
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Product Details
CUTTING HEAD WITH DRILLING FUNCTION:
It refers to cutting with automatic drilling function, mainly to increase a fully automated drilling assembly in the traditional waterjet cutting machine, because when cut the smaller pore with waterjet, the accuracy is not high, the efficiency is low. The perfect combination of automatic drilling assembly and CNC waterjet system can achieve the automatic drilling, automatic feeding, automatic chip removal, pre-drilling before cutting and other functions for smaller pore. It has the ability to complete a one-time cutting drilling, that improve the quality of products, but also improve the efficiency of production.

The pre-drilling function before cutting is mainly used for the multi-layered composite material, because of the characteristics of high-pressure water jets, before cutting and during drilling, water jet will take some time to punch through the material from the surface of material. In the drilling process, the non-multi-layered die-casting material is not affected, and have a certain impact on the multi-layered die-casting composite material, likely to cause stratification. At this time you can use the pre-drilling function, hit a hole as the inlet for cutting. This function is currently the best way to solve the problem of easy stratification when cutting the multi-layered composite material.

A high pressure water jet cutting machine is a tool which slices into metal and other materials, using a jet of water at high velocity and pressure. Because of its advantages of low noise, no pollution, high precision and good reliability, it has been widely used in mining, automobile, paper-making, food, art, construction and other industries.Waterjet can cut almost every thing, including metal,glass,plexiglass,ceramic,marble, granite, rubber and compound material etc.

Cutting accuracy:+/- 0.1mm

Repeat accuracy:+/- 0.05mm

Dynamic 5 axis waterjet cutting machine is specially used to cut marble and granite, because it can compensate 10° cutting angle and make the stone patchwork more perfect. It is a kind of bevel cutting machines.
Due to the water jet cutting is a way of flexible cutting, therefore the product cross section will have a certain degree of inclination after cutting by the traditional 3 axis water jet cutting machine. In order to ensure the accuracy of vertical cutting section, it must reduce the cutting speed. However, our 5 axis water jet cutting machine can not only ensure the accuracy of vertical cutting section by compensating the cutting angle, but also not reduce the cutting speed.Therefore, it is the best choice to use it to cut mosaic stone, which saves the time and manpower for the second polishing of mosaic stone.

MAX5 series 5 axis water jet cutting machine unlike a conventional 3-axis waterjet cutting machine, this product is added with A-axis (in a vertical direction) and C-axis (which rotates around the Z axis).By using state-of-the-art technology and the Italian ECS control system, it can produce 0-±45° inclined cuts with a maximum rotation angle of up to ±540°. Currently, this state-of-the-art cutting equipment has been applied by a wide variety of advanced processing industries.

It can cut the product cross section without inclination, and cut bevel at any angle, as well as cut the workpiece vertically, especially cut cone, curved impeller, gear, etc.

CNC Water Jet Cutting Machine Parameter(L=Gantry type)
Parameters
Unit
YCWJ-L1010
YCWJ-L2015
YCWJ-L3015
YCWJ-L3020
YCWJ-L2060
Efficient Cutting Area
mm
1000×1000
2000×1500
3000×1500
3000×2000
2000×6000


Axis Travel
X
mm
1000
2000
3000
3000
2000
Y
mm
1000
1500
1500
2000
6000
Z
mm
150-180
150-180
150-180
150-180
150-180
X axis and Y axis adopt HIWIN or I+F ball screw and guideway;The servo motor to drive we adopt MITSUBISHI or Yaskawa
Cutting Accuracy
mm
±0.1
Positioning Accuracy
mm
±0.2
X,Y Dry-run Speed
m/min
0-15 (if need 30m/min speed,we can do as request )
Cutting Speed
m/min
as to detail material and thickness

Main Feature:
Control: PLC
Shifting: electro-hydraulic
Control Cooling: cooler/oil heat exchanger
Inlet water filter accuracy: ≤0.45μm
Oil-return filter accuracy: 20 μm
Working temp: 0-50°c
Outlet: UNF 3/8" Cooling in/out-let: NPT1"
Max orifice size: 0.33mm

High Pressure Pump
Model
YCG-3038
YCG-3742S
YCG-7542S
Max Pressure
3800Bar/55,000Psi
4137Bar/60,000Psi
4137Bar/60,000Psi
Max Water Flow
3.7L/min
3.7L/min
7.4L/min
Max Orifice/Nozzle
0.011/0.03
0.013/0.04
0.016/0.05
Power
30KW/40HP
37KW/50HP
75KW/100HP

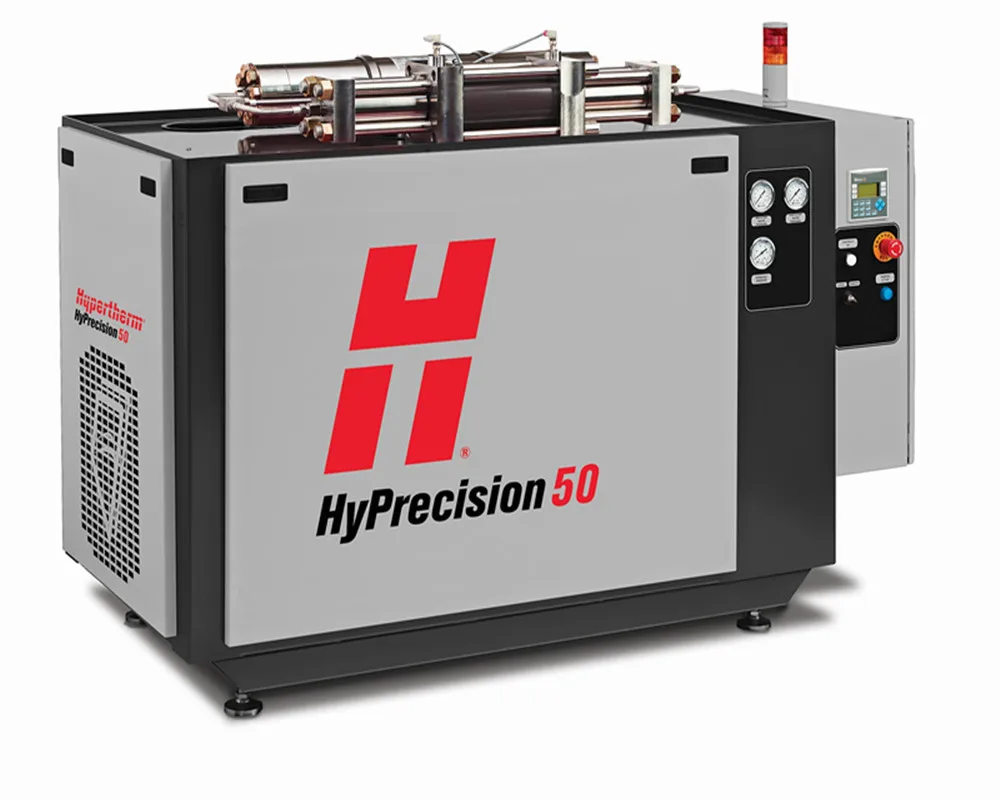

Hypertherm HP Pump
KMT HP Pump

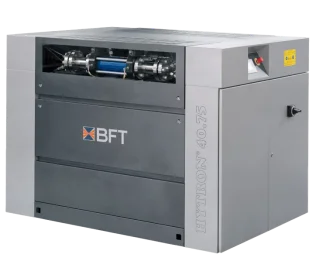

BFT HP Pump

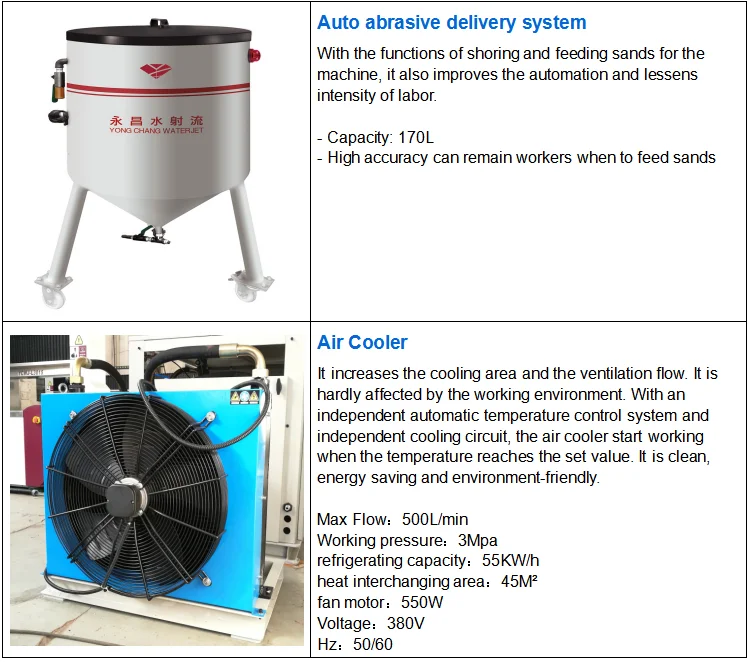

Optional Accessories
Related Products
Dynamic 5axis Waterjet Machine

(Bevel Cutting 0-±10°)

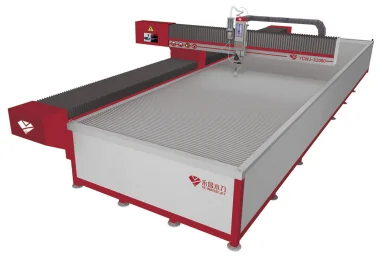

3 axis Waterjet Cutting Machine

    Max5 axis

Water Jet Cutting Machine

  (Bevel Cutting 0-±45°)

Multi- head WaterJet Cutting Machine


Cantilever Type
Waterjet Cutting Machine

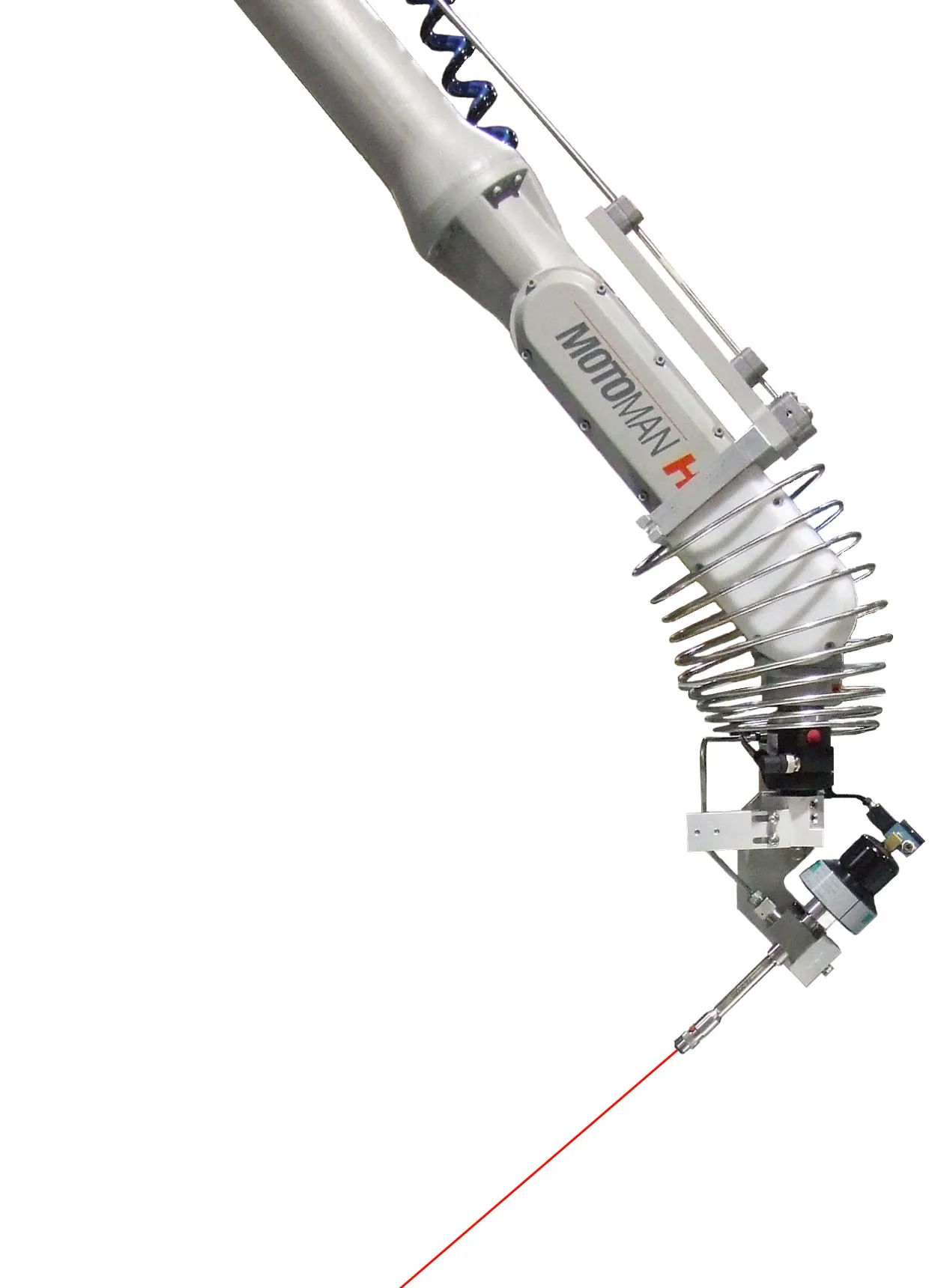

Robotic
Waterjet

Cutting Samples

Glass Cutting

Metal Cutting

Stone Cutting

Composite material cutting

Leather cutting

Crystal Cutting

Packing&Delivery
Company Information

Development

1999, YC Industry was established by Mr. Min, mainly engaged in manufacturing large production line.


2005, YC started to research and developed UHP water jet cutting equipment and cooperated with German KMT as well.

2008, YC started to cooperate with the UK agent.

2009, YC started to cooperate with USA Accustream whom is specialized in water jet parts and pumps.

2014, YC Industry built a new company Wuxi YC Waterjet Technology Co.,Ltd.

2015, YC WATERJET started to cooperate with RU agent.


2019,YC has sold the products to more than 50 countries .

Why us

We are engaged in machinery manufacturing since the year 1999,there are more than 20% workers with more than 8 years experience in water jet cutting field.


Our chief engineer Mr. Tian who started research of water jet when he was a university student has 20 years experience in water jet cutting field, and other technical persons have over 10 years experience.

YC is the partner of Accustream/Hyperthem, every year we have technical meetings with engineers from USA.

For different customers in different industries we will provide different solutions, Your water jet is tailored based on your individual needs.

Our Engineers go to many countries for installation and debugging every year.
